Features
• Amplifier
- Class D power amplifier design
- Switch power supply
• Controls
- Volume control
- Phase switch (0/180)
- Frequency control
- Automatic power turn "ON"
• Connectors
- Input:Unbalance (RCA L & R)input / Blanced(XLR) input
- Output: RCA jack for stereo output
• Indicators
- Signal / Protection / POWER
Specification
• Amplifier
- Class D power amplifier design
- Switch power supply
• Controls
- Volume control
- Phase switch (0/180)
- Frequency control
- Automatic power turn "ON"
• Connectors
- Input:Unbalance (RCA L & R)input / Blanced(XLR) input
- Output: RCA jack for stereo output
• Indicators
- Signal / Protection / POWER
Specification

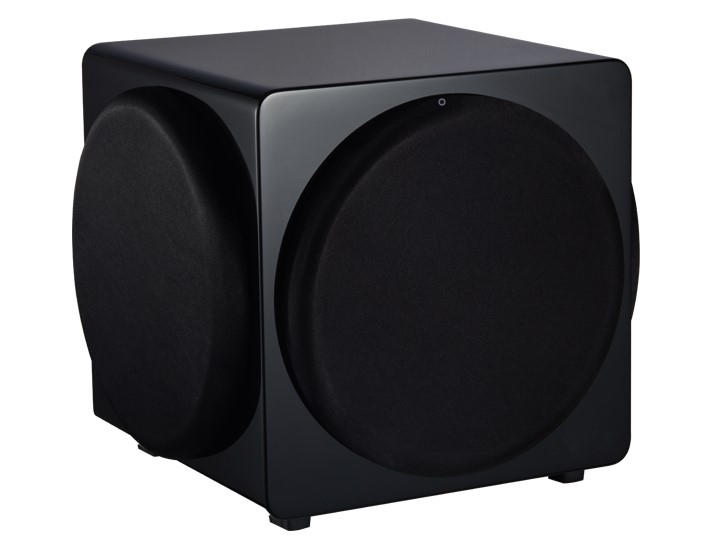

| Model | SUB8-3D | ||||
| Power Rating(RMS) | 200W | ||||
| Frequency Response | 30Hz - 100Hz & -3dB | ||||
| Signal to Noise Ratio | 90dB | ||||
| Distortion(THD) | < 0.5% | ||||
| Input Impedance | 20K ohms | ||||
| Driver | 8" 4ohm | ||||
| Auxiliary Bass Radiator | 8" x 2 | ||||
| Dimensions (WxDxH) | 330x310x304mm | ||||
